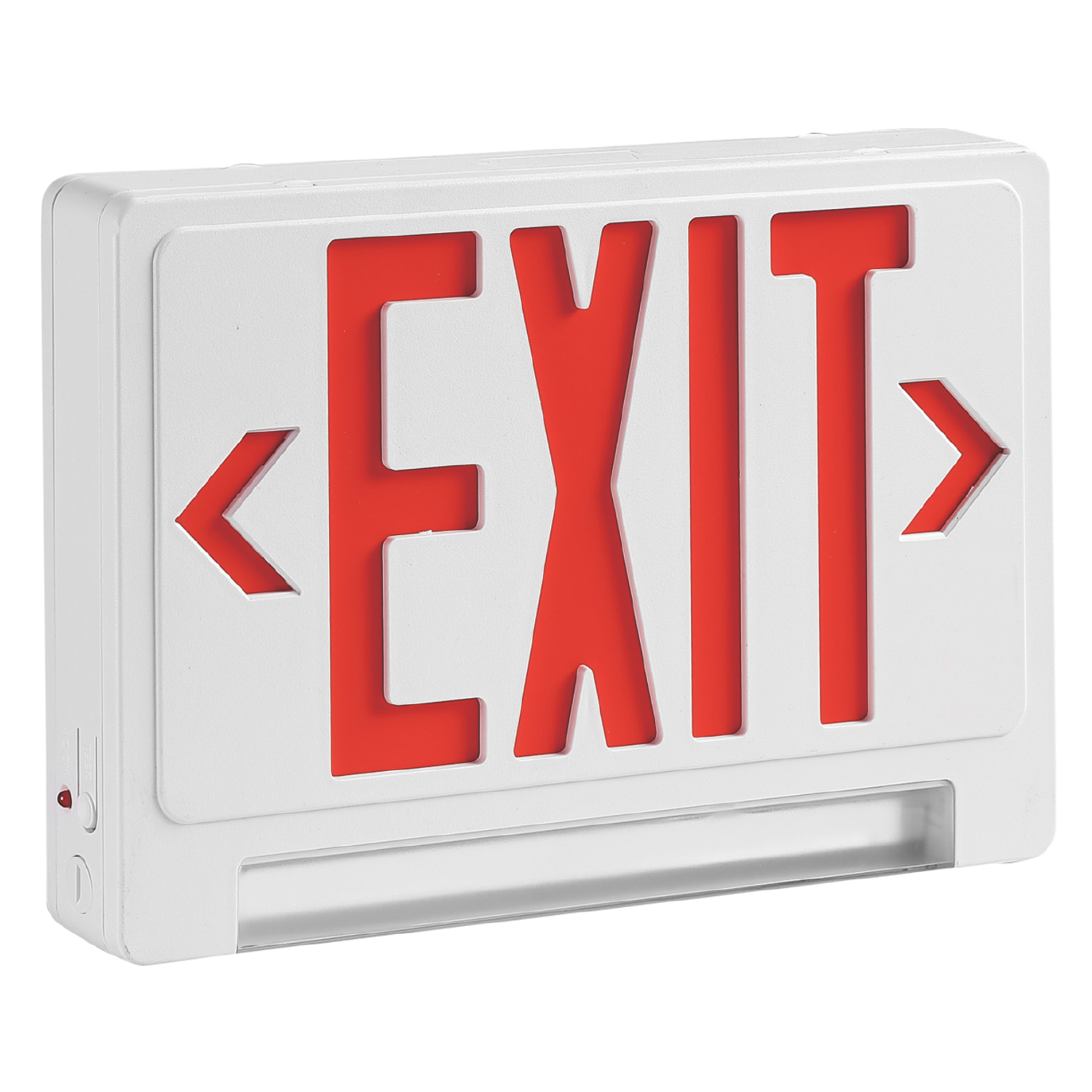

EEU-5-LED
EEU-5-LED
$0.00
• Energy-efficient combination unit with an integrated light bar
• Choice of red or green letters
• Slim-profile design
• Designed for ceiling, end, and wall installation
• UV-stabilized thermoplastic housing with a UL 94 V-0 rating
• Nickel-Cadmium battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
• Meets UL 924, NFPA 101, NEC and OSHA illumination standards.
• 5-year warranty on housing and electronics
Letter Color:
Housing Color:
Quantity:
FEATURES
- Energy efficient combination unit with an integrated light bar
- Choice of red or green letters
- Designed for ceiling, wall, or end mounting
- Fast, easy installation
- Part of Astralite’s quick ship program
CONSTRUCTION
- UV-stable, impact-resistant thermoplastic housing; meets UL94V-0 flame rating
- Ships with extra face panel for field conversion to double face
- EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance
LAMP
- High quality LEDs provide uniform diffused illumination
- Draws 4W
Electronics
- Dual-voltage input capability: 120/277V
- Brownout protection
- Low-voltage disconnect
- AC indicator light with test switch
Battery
- Nickel-cadmium battery is standard
- Provides a minimum of 90 minutes of illumination in emergency mode
- Operating temperature range: 10-40°C
Compliance
- Meets or exceeds UL 924, NFPA, NEC, and OSHA illumination standard
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
