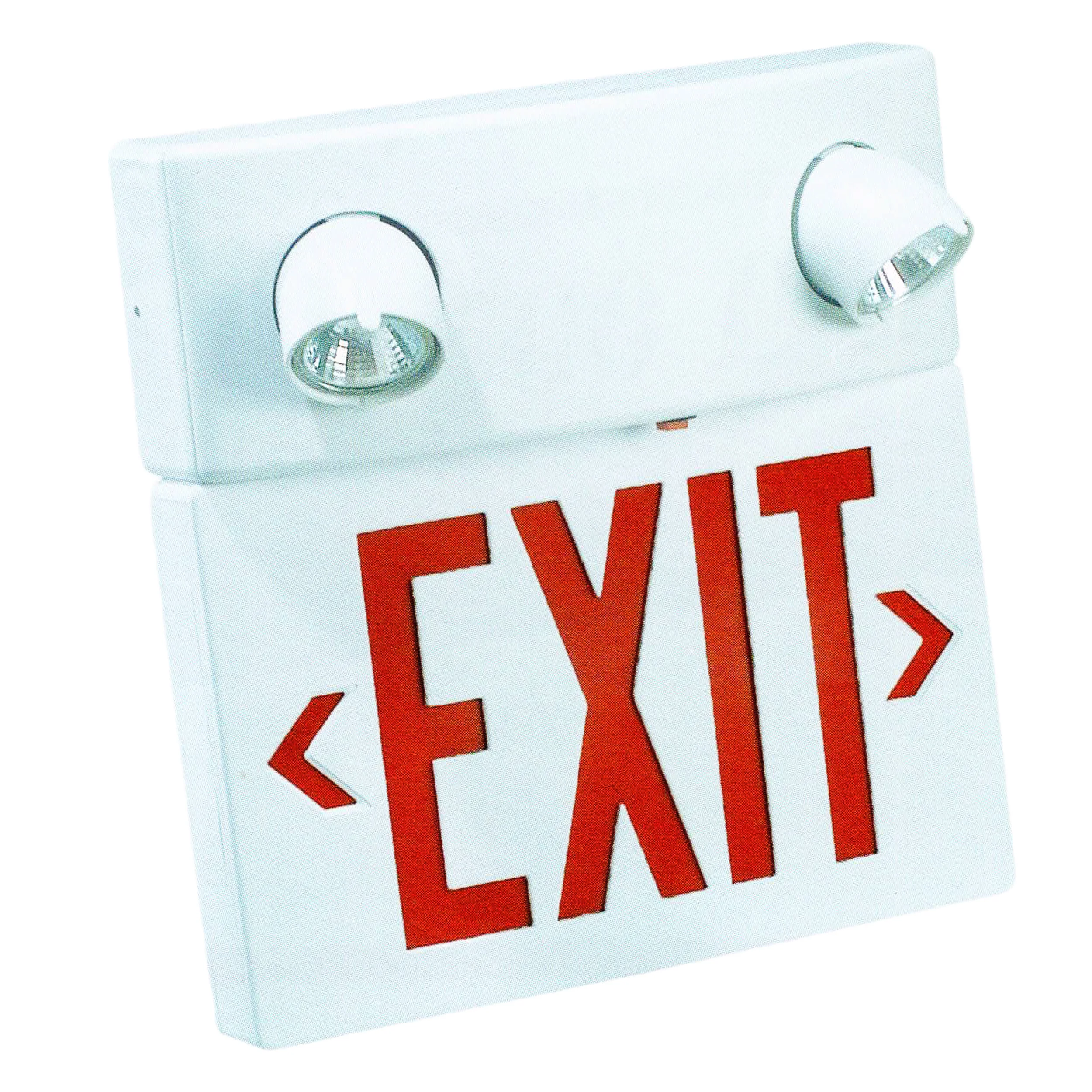

TP-200-PLUS-LED
TP-200-PLUS-LED
$0.00
Unit Capacity:
Letter Color:
Housing Color:
Lamping:
Options:
Quantity:
FEATURES
- Contractor’s choice thermoplastic EXIT-EM combo with remote capability
- Designed for wall mount only
- Remote capable: choice of 16W, 22W, or 25W unit capacity
- Fast, easy installation
- Part of Astralite’s quick ship program
CONSTRUCTION
- UV-stable, impact-resistant thermoplastic housing; meets UL94V-0 flame rating
- EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance
LAMP
- Utilizes two adjustable 1W LED heads in emergency mode
- Exit face illuminated by long-lasting high-output AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Low-voltage disconnect
- AC lockout installation
- Brownout protection
- AC indicator light with test switch
Battery
- Lead-acid battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
- Nickel-cadmium battery offered as an option
- Operating temperature range: 10-40° C
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
