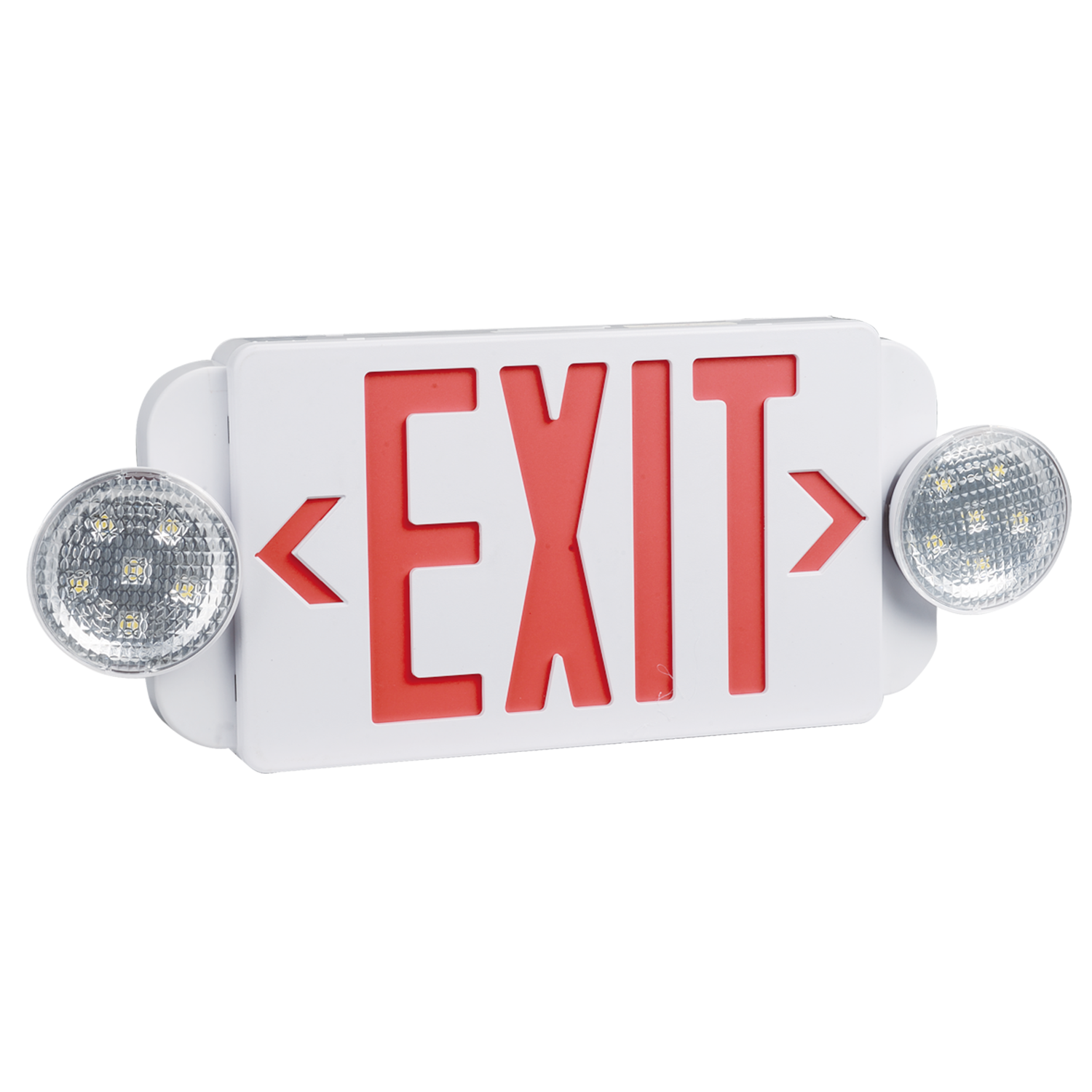

EEU-3-LED-CH
EEU-3-LED-CH
$0.00
• Sleek, compact design with rounded heads
• Designed for ceiling and wall installation (pendant mount kit available as an option)
• Part of Astralite’s quick ship program
• UV-stabilized thermoplastic housing with a UL 94 V-0 rating
•Nickel-Cadmium battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
• Meets UL 924, NFPA 101, NEC and OSHA illumination standards.
• 5-year warranty on housing and electronics
Letter Color:
Housing Color:
Quantity:
FEATURES
- Contractor’s choice thermoplastic EXIT-EM combo
- Sleek, compact design
- Designed for wall and ceiling mounting
- Optional remote capability: 3W at 3.6V
- Part of Astralite’s quick ship program
CONSTRUCTION
- UV-stable, impact-resistant thermoplastic housing; meets UL94V-0 flame rating
- Field selectable chevron directional indicator offers a choice of direction on-site
- EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance
LAMP
- Utilizes two high-efficiency 1W LED heads in emergency mode; higher wattage lamps are available upon request, consult factory for more options
- Long-lasting high-output AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Brownout protection
- Low-voltage disconnect
- AC indicator light with test switch
Battery
- Nickel-cadmium battery is standard
- Provides a minimum of 90 minutes of illumination in emergency mode
- Operating temperature range: 10-40° C
Compliance
- Meets or exceeds UL 924, NFPA, NEC, and OSHA standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
