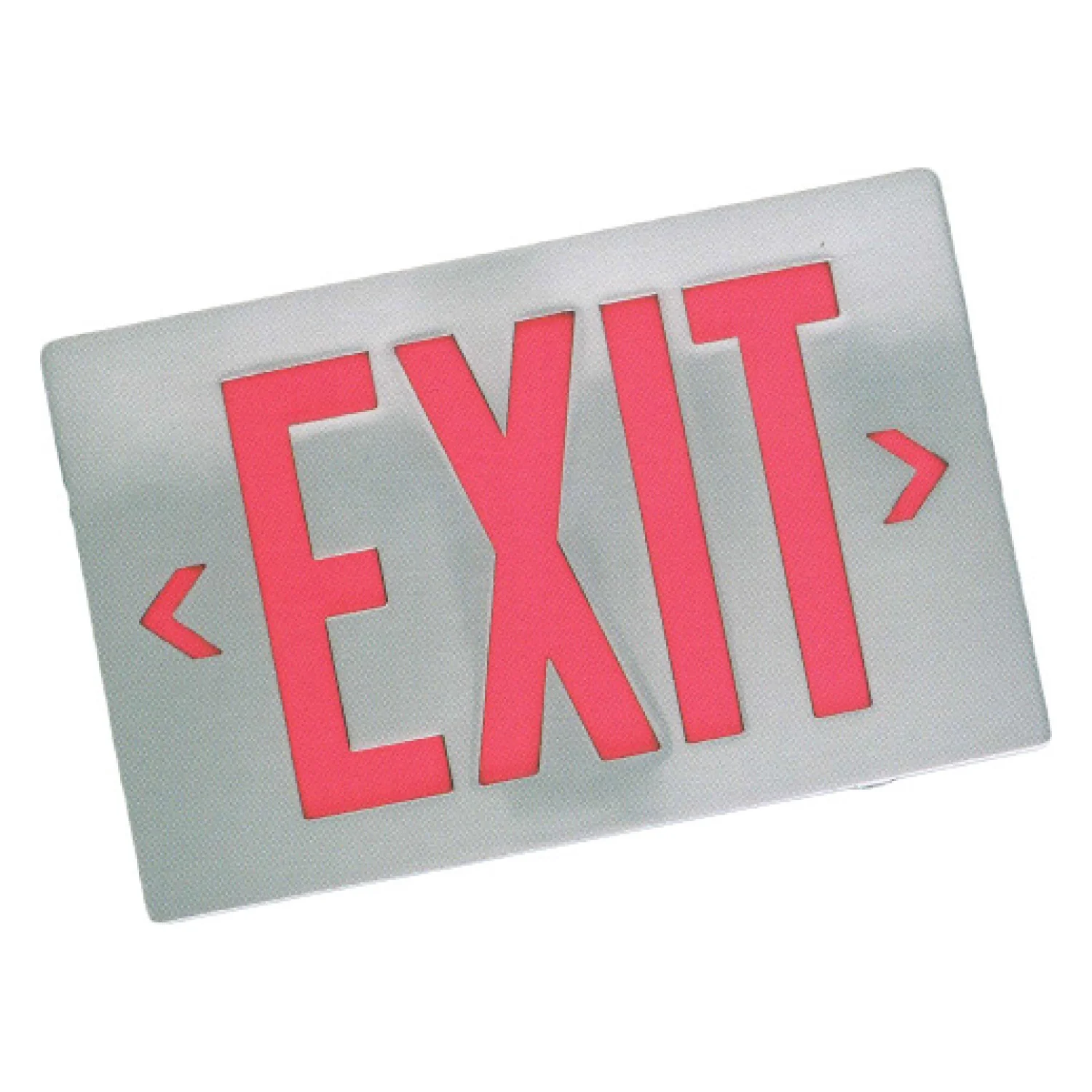

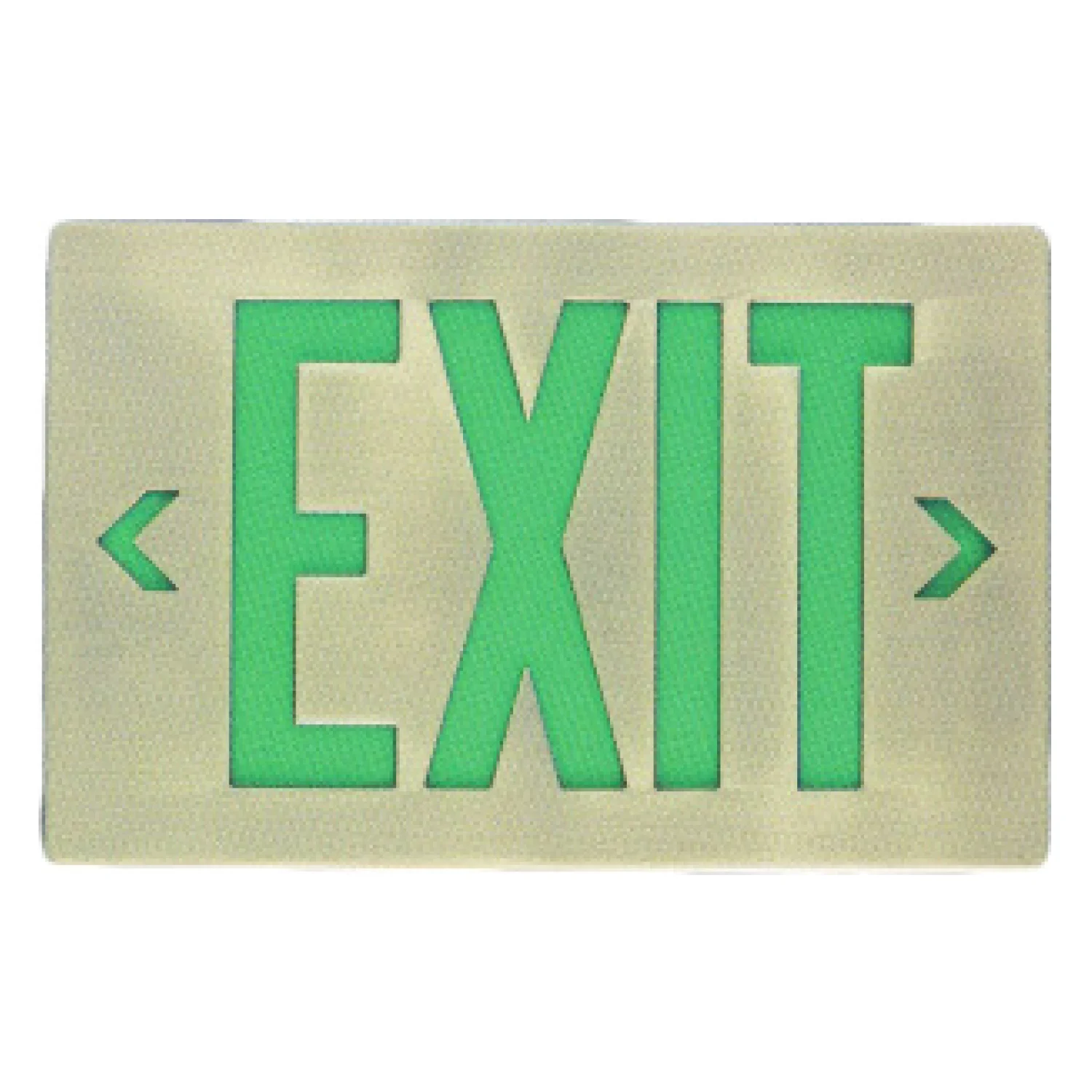

LB-U
LB-U
$0.00
• Special plated alloy construction
• Field-selectable chevrons
• Wall, ceiling, or end mount (end mount kit offered as an option)
• Nickel-Cadmium battery is standard for EM units, and provides a minimum of 90 minutes of illumination in emergency mode
• Meets UL 924, NFPA 101, NEC and OSHA illumination standards.
• 5-year warranty on housing and electronics
Letter Color:
Mounting:
Chevrons:
Housing Color:
Power Configuration:
Factory Installed Options:
Quantity:
FEATURES
- Architectural-grade exit sign with self diagnostics option
- Style is the difference
CONSTRUCTION
- Special plated alloy construction
- Choose from five metal finishes: silver, gold, satin nickel, antique brass, or bronze; contact factory for custom finishes
- Available in single or double face configurations
- EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance
LAMP
- AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Low-voltage disconnect
- Brownout protection
Battery
- EM option comes standard with nickel-cadmium battery
- Provides a minimum of 90 minutes of illumination upon loss of power
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
