• Surface mount version features a contoured thermoplastic housing, with universal mounting capability.
• Recessed version features heavy-gauge galvanized steel backbox with integral mounting channels for ease of installation in most ceiling types.
• UV-stabilized thermoplastic housing with a UL 94 V-0 rating
• Nickel-Cadmium battery is standard, and provides a minimum of 90 minutes of illumination in emergency mode
• Meets UL 924, NFPA 101, NEC and OSHA illumination standards.
• 5-year warranty on housing and electronics
Mounting:
Number of Faces:
Letter/Background Color:
Housing Color:
Power Configuration:
Quantity:
FEATURES

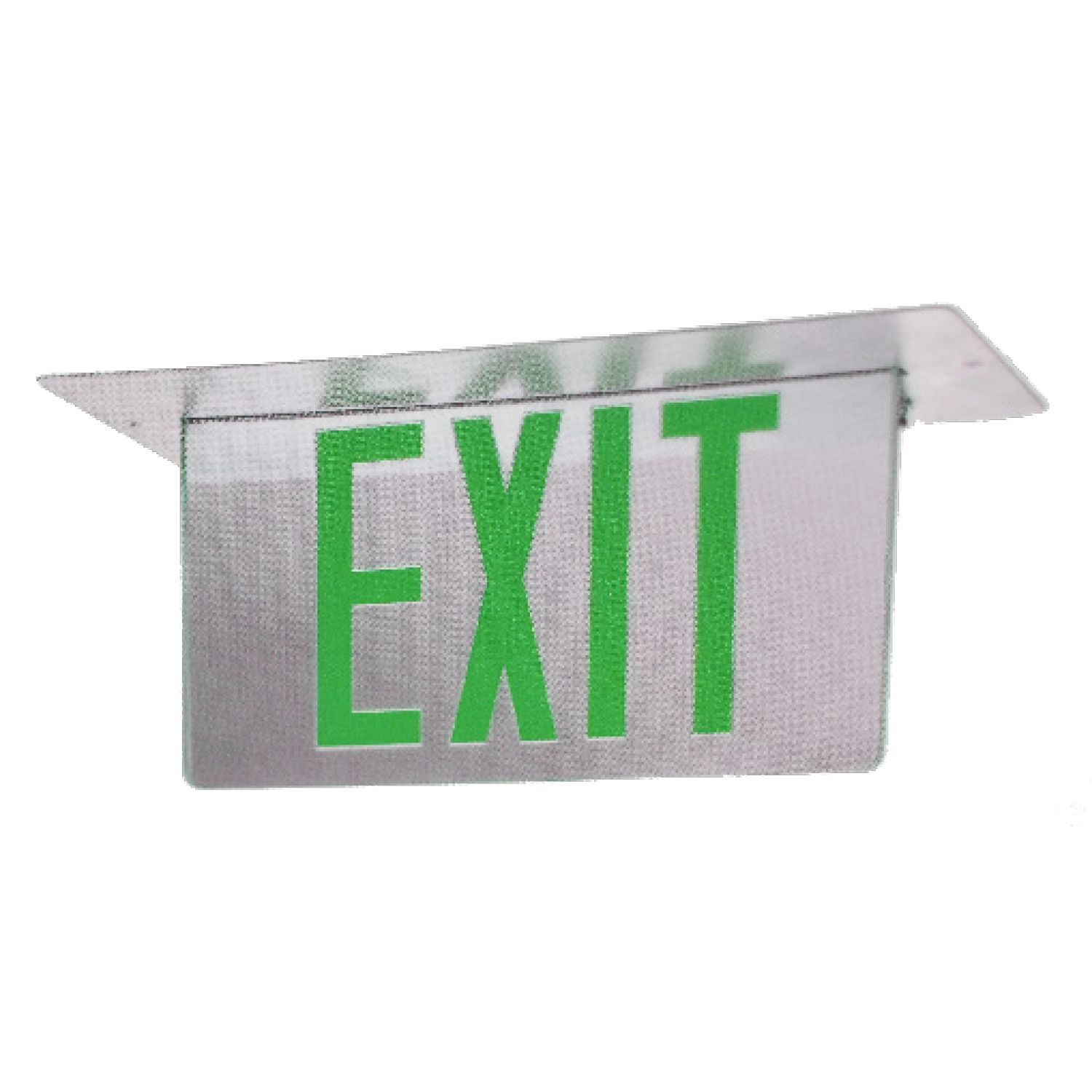

- Thermoplastic edgelit exit sign
- Fast, easy installation
- Designed for recessed or surface mounting
- Part of astralite’s quick ship program
CONSTRUCTION
- Product ships with universal canopy (not shown)
- Recessed version features heavy-gauge galvanized steel back box with integral mounting channels
- UV-stable, impact-resistant thermoplastic housing; meets UL94V-0 flame rating
- EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance
RECESSED APPLICATION
- Suggested Trim Opening: 4.75” x 15”
- Plate Measurement: 5.5” x 16”
LAMP
- AlInGaP LEDs with a rated life of 10+ years
Electronics
- Dual-voltage input capability: 120/277V
- Low-voltage disconnect
- Brownout protection
- Unit draws less than 2.5W
Battery
- EM option comes standard with nickel-cadmium battery
- Provides a minimum of 90 minutes of illumination upon loss of power
Compliance
- Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards
Warranty
- 5-year warranty on housing and electronics. Battery is prorated
