FEATURES

• Edge-lit exit sign with extruded aluminum trim

• Slim-profile design complements upscale commercial or retail applications

• Can be ordered with special wording face panel

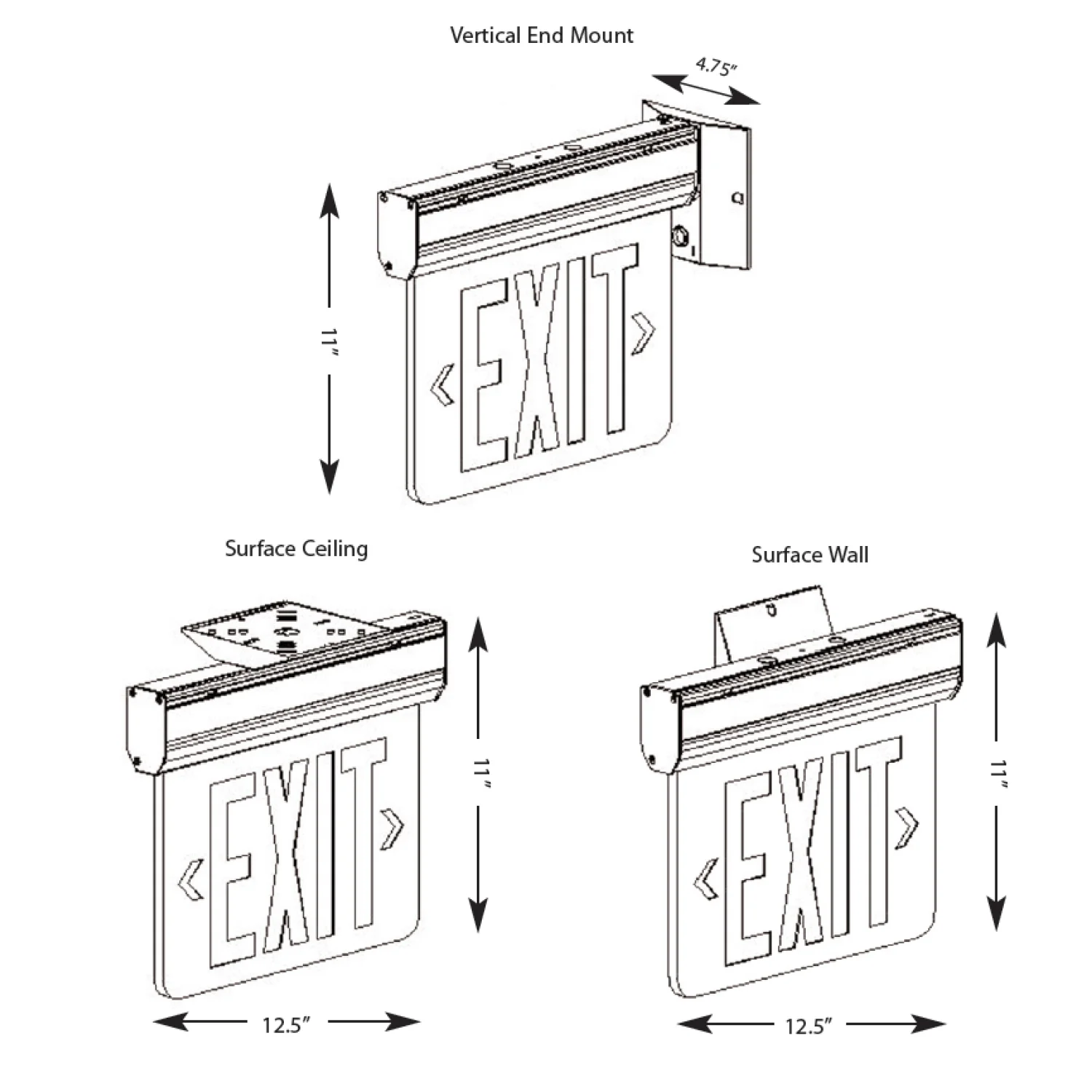

• Designed for wall, ceiling, or end surface mounting

CONSTRUCTION

• Extruded auminum housing and acrylic panel

• Available with 6”, 8”, or 10” EXIT letters

• Field-selectable chevron directional indicator offers a choice of direction on-site

LAMP

• AlGaInP L.E.D. with a rated life of 10+ years

ELECTRONICS

• Dual-voltage input capability: 120/277V

• Low-voltage disconnect

• AC indicator light with test switch

• Brownout protection

BATTERY

• EM option comes standard with nickel-cadmium battery

• Provides a minimum of 90 minutes upon loss of power

• Operating temperature range: 10-40° C

COMPLIANCE

• Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards

WARRANTY

• 5-year warranty on housing and electronics. Battery is prorated
